TEW24 Camplux on Demand Electric Tankless Water Heater
$339.00
Skip to product information
Apply for Financing

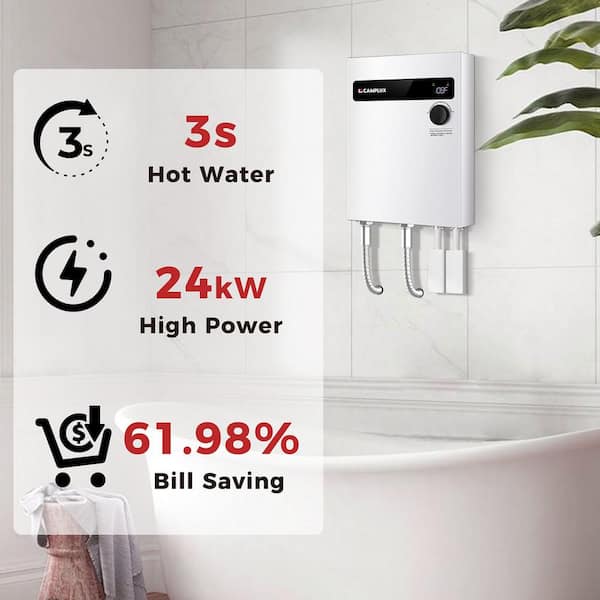

TEW24 Camplux on Demand Electric Tankless Water Heater
|
Specification |
DETAILS
|
|---|---|
| Model | TEW24 |
| Type | Electric Tankless Water Heater |
| Power Rating | 24 kW |
| Voltage | 240V AC |
| Maximum Flow Rate | Up to 4.7 GPM |
| Temperature Range | 80°F – 140°F |
| Activation Flow Rate | 0.66 GPM minimum |
| Water Connections | 3/4" NPT inlet/outlet |

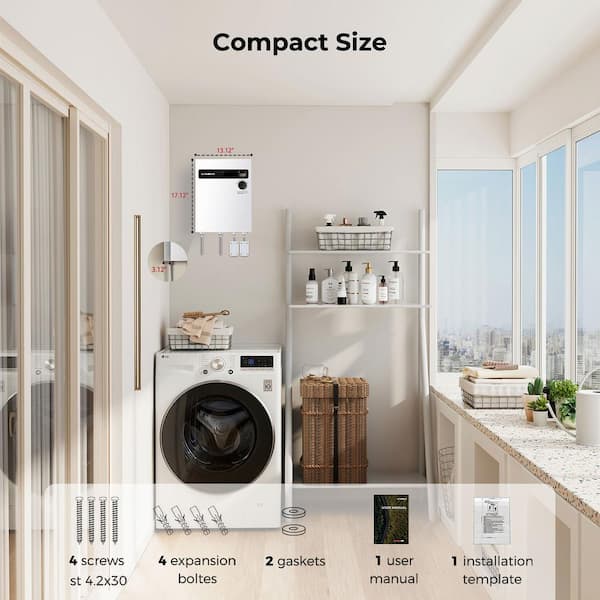

| Dimensions | 17.12" H × 13.12" W × 3.12" D |
| Mounting | Wall-mounted |
| Display | Digital temperature display |
| Efficiency | Up to 99.8% thermal efficiency |
| Breaker Requirements | Three (3) 40-amp double-pole breakers |
| Wire Size Required | Three (3) runs of 8 AWG copper wire |

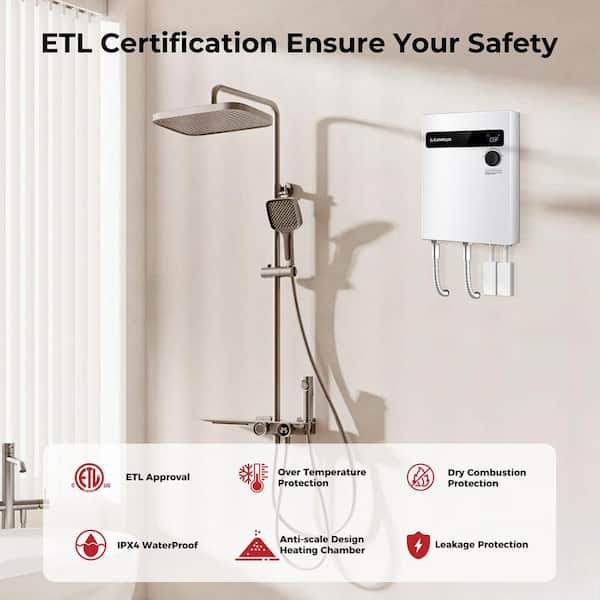

| Safety Features | Overheat protection, dry-fire protection, water/electric separation, ETL certified |
| Application | Whole-house residential or light commercial hot water supply |
Key Features
- Provides endless on-demand hot water without a storage tank.
- Self-modulating heating technology adjusts power consumption based on water flow and temperature demand.
- Compact design saves significant installation space compared to traditional tank heaters.
- Heating elements are isolated from the water path to reduce scale buildup and maintenance.
- Suitable for homes requiring multiple simultaneous hot water fixtures when properly sized.

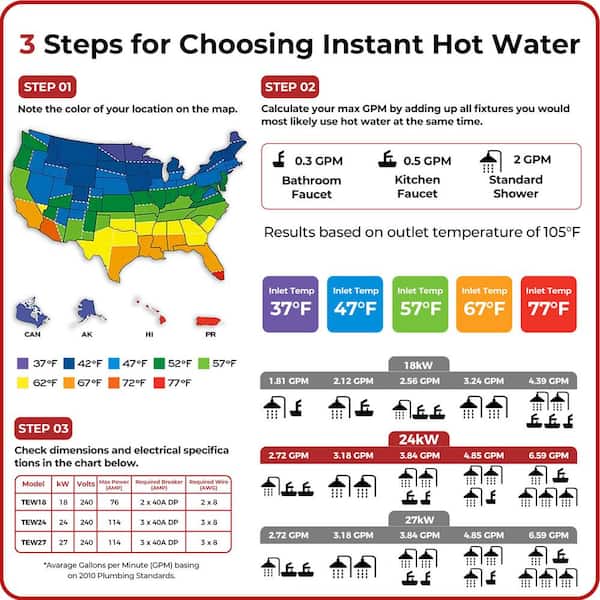

Electrical Load
The TEW24 draws approximately 100 amps at 240 volts (24,000W ÷ 240V = 100A), which is why it requires:
- 3 × 40A double-pole breakers
- 3 × dedicated 8 AWG circuits
Verify your electrical service has adequate capacity before installation.
