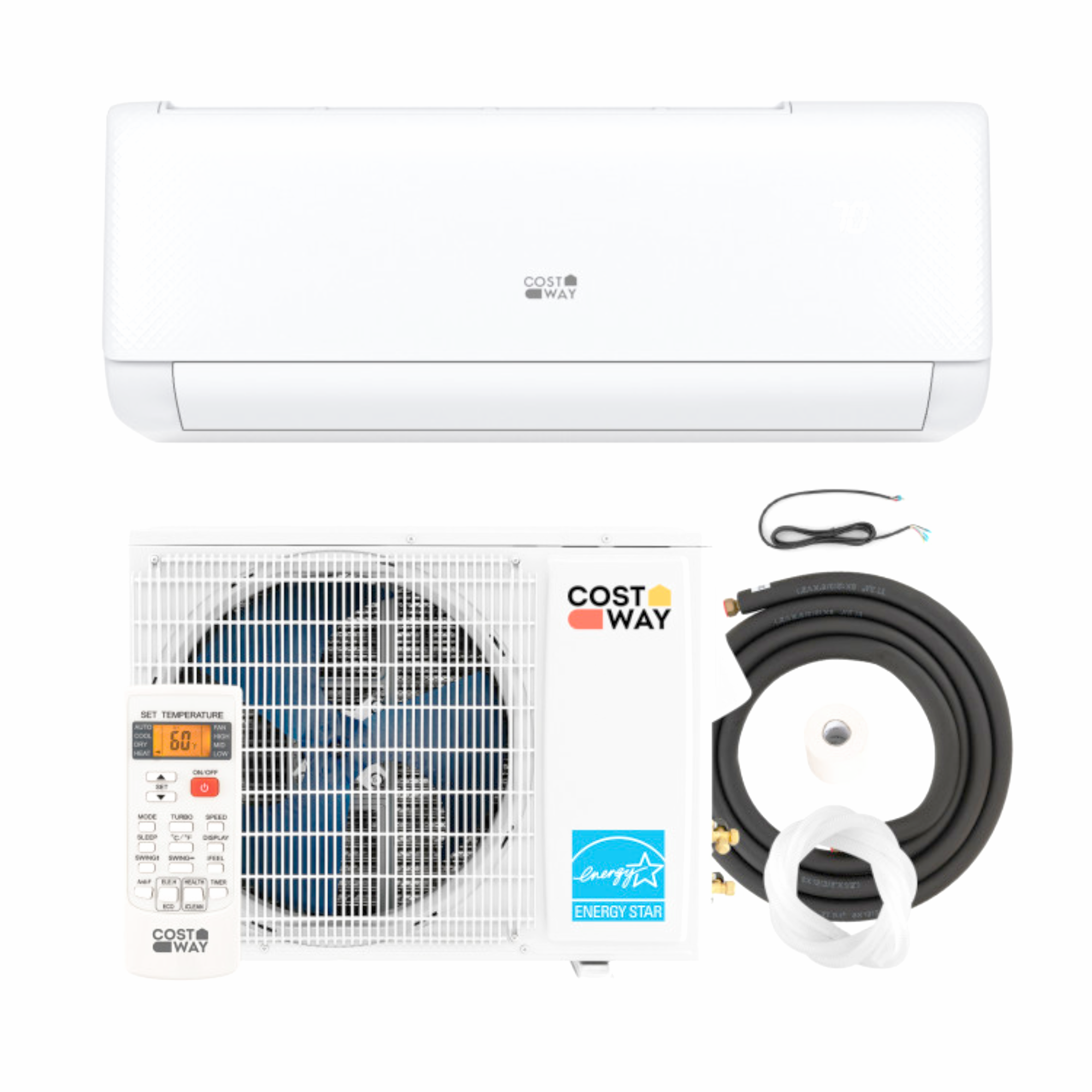

12K BTU Ductless Mini Split AC & Heat Pump

This 12,000 BTU mini split HVAC system is a high-efficiency heating and cooling upgrade designed to improve comfort inside enclosed spaces year-round. With strong airflow, quiet indoor operation, and wide temperature control, it’s a practical option for managing climate in work, specialty, and insulated trailer builds. This part can be purchased individually or requested as an upgrade on a new trailer build.

Part Features

• Cooling Capacity: 12,000 BTU
• Heating Capacity: 12,300 BTU
• Coverage Area: up to 750 sq. ft.
• Cooling Power: 1040W
• Heating Power: 960W
• Air Flow Rate: 330 CFM
• SEER2: 20
• HSPF2: 8.5
• Dehumidifying Capacity: 36 pints/day
• Temperature Setting Range: 60℉–90℉
• Refrigeration: R32
• Indoor Noise Level: 23 dB
• Outdoor Noise Level: 53 dB
• Voltage: 115V~60Hz/1PH
• Indoor Unit Color: White
• Outdoor Unit Color: White
• Material: Metal, Aluminum, Plastic

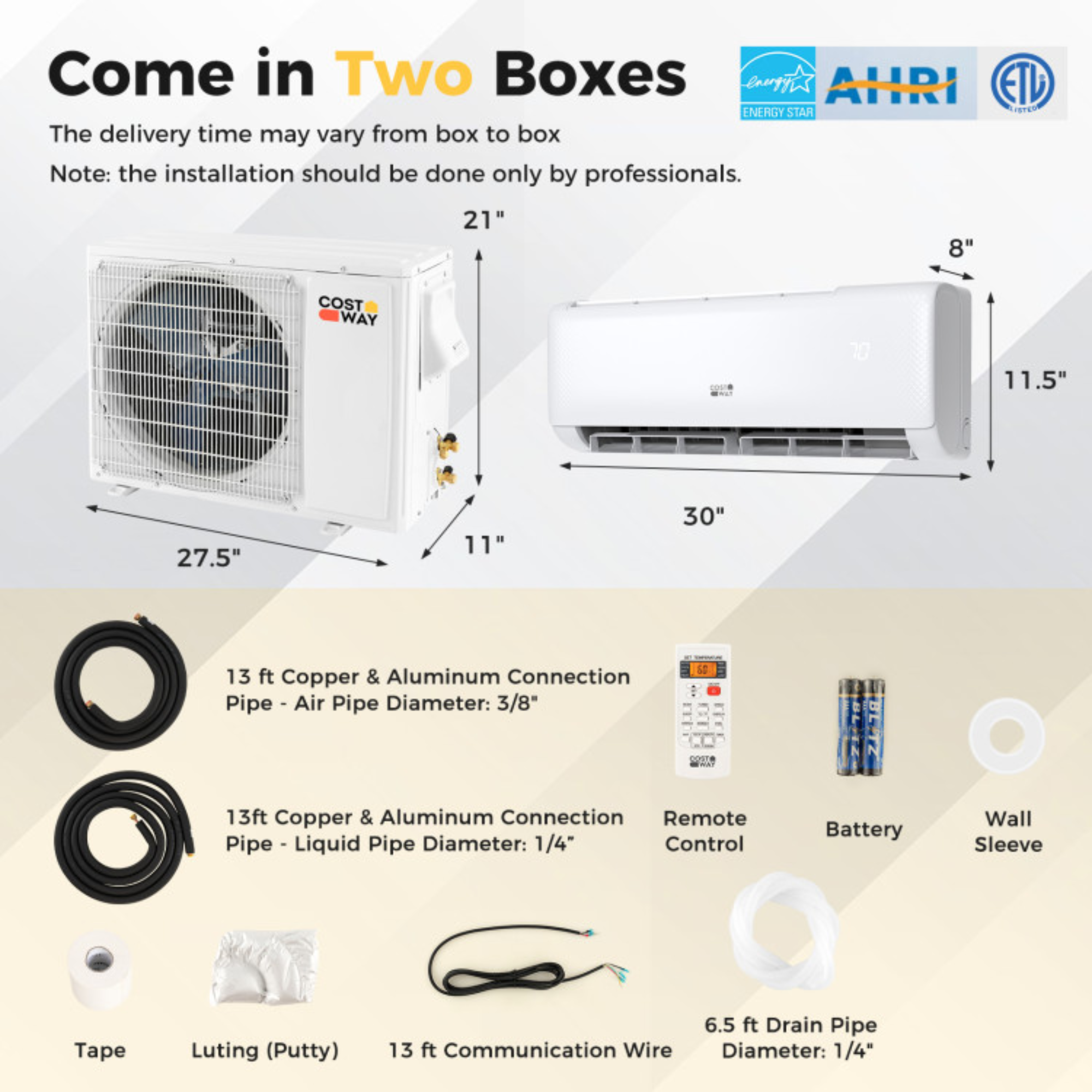

• Indoor Unit Size: 31" x 8" x 11.5" (L x W x H)
• Outdoor Unit Size: 29" x 11" x 21" (L x W x H)
• Total Net Weight: 83 lbs
• Box Qty: 2 (may vary by batch)

Installation & Compatibility

• Designed for applications needing heating and cooling coverage up to 750 sq. ft.; suitable for enclosed spaces where indoor and outdoor units can be mounted with appropriate clearance.
• Suitable as an upgrade on a new trailer build or as a replacement HVAC component where similar capacity and electrical requirements are desired.
• Electrical requirement: 115V~60Hz/1PH; verify available power supply and routing for installation.

Related Uses

• Enclosed Trailer Parts & Accessories
• Trailer Upgrade Options
• Replacement Trailer Components
• Custom Trailer Build Add-Ons
• Heavy-Duty Trailer Parts for Sale

Additional Details

• This part can be purchased individually or added as an upgrade to a new trailer build.
• Features and compatibility may vary depending on trailer size and configuration.
• Options and availability may change based on selected specifications and market conditions.
